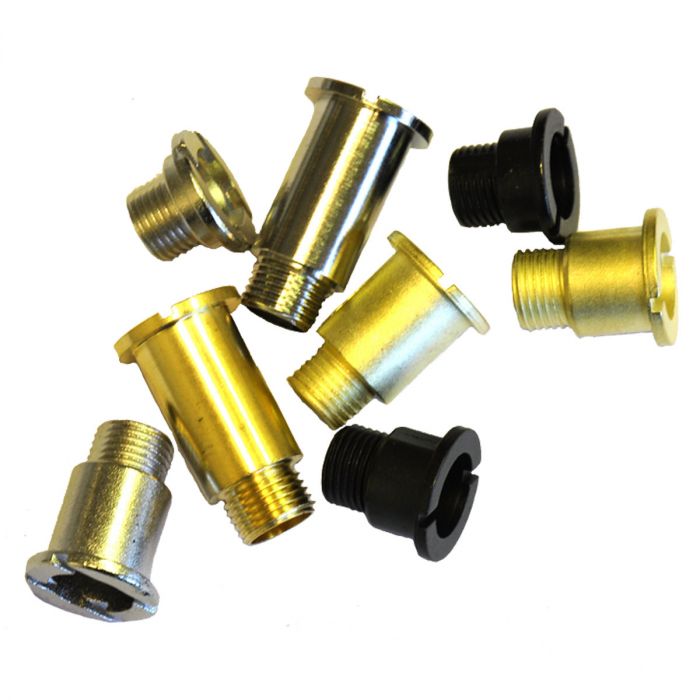

Collar Nuts for Install Clock Movements
As low as
€0.00
€0.00
In stock
SKU
KMUTTER
Choosing the right central fixation screw for your ticking (step) movement
- Measure the thickness of your clock dial.
- The length of the suitable central fixation screw L should be 3...5mm bigger than the dial thickness.
- The shaft length of movement should be at least 6 mm bigger than dial thickness.
- Next step is to select the color. Central fixation screws are available black. nickel. and brass
Central Fixation Screw
 |
||||
| Item no. | Measure L -0.2 | Color | ||
| Brass | Nickel | Black | ||
| 583 825 | 3.9 mm | X | ||
| 583 826 | 3.9 mm | X | ||
| 581 374 | 5.2 mm | X | ||
| 581 375 | 5.2 mm | X | ||
| 583 823 | 5.0 mm | X | ||
| 581 582 | 7.0 mm | X | ||
| 581 583 | 7.0 mm | X | ||
| 581 738 | 7.0 mm | X | ||
| 581 376 | 9.0 mm | X | ||
| 581 377 | 9.0 mm | X | ||
| 581 700 | 9.0 mm | X | ||
| 581 584 | 11.0 mm | X | ||
| 581 585 | 11.0 mm | X | ||
| 583 827 | 11.0 mm | X | ||
| 581 586 | 13.0 mm | X | ||
| 581 587 | 13.0 mm | X | ||
| 583 828 | 13.0 mm | X | ||
| 583 822 | 15.0 mm | X | ||
| 581 378 | 16.0 mm | X | ||
| 581 379 | 16.0 mm | X | ||
| 582 829 | 16.0 mm | X | ||
| 581 694 | 21.0 mm | X | ||
| 581 694 | 21.0 mm | X | ||
| Product Name | Collar Nuts for Install Clock Movements |
|---|---|
| Country of Manufacture | Germany |
