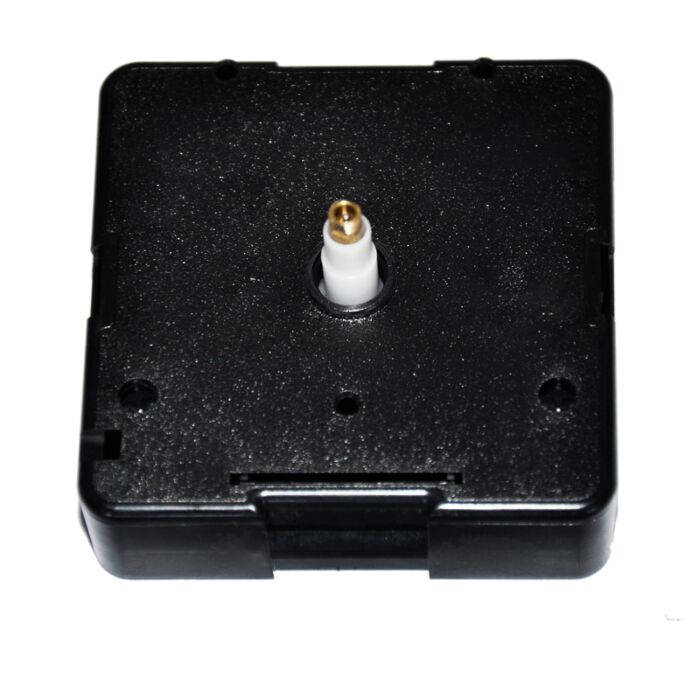

High Torque Clock Movement UTS 11.0 mm
- Buy 10 for €6.35 €5.12 each and save 10%
Central fixation screw appropriate length selection:
Measure the thickness of your clock dial.
Central fixation screw suitable length L should be 3 to 5 mm longer than the thickness of the clock dial.
The shaft height should be at least 6 mm longer than the dial's thickness
Central fixation screws are available nickel. brass. and black.
The thread of central fixation screw can be screwed into movement approximately 3.5 mm
Hand nut pick:
Choose closed if there are no plans to use second hand
Open. if you have the intention to use the second hand.
Hand nuts are available nickel. brass. and black
When you buy hands from us. we bundle mechanisms with nut according to the color of selected hands
Please use Contact Us form to add all your special requests to your order
The kit includes:
A clock movement. central fixation screw. hand nut. the rubber washer and hook.
Mechanisms are only suitable euro shaft hands
The clock mechanism is suitable for the wall clocks. with dial thickness up to 13.1 mm
Diameter of clock is up to 40 cm
The movement operates with one AA battery. what you can find at the affordable price here ...
High Torque UTS quartz movement with 13.8 mm shaft length
- For dial up to 4 mm
- Powered by a single carbon-zinc battery IEC(AA) 1.5 V R6
- Frequency of quartz 32.768 KHz
- Average operating current of up to 130 µA
- Operating voltage: 1.2......1.7V
- Operating temperature: -5° C...+50° C
- Storage temperature: -20° C...+70° C
- Accuracy at room temperature ± 1 sec/day
- Battery life of about 1 year
- Mounting position: any
- Weight without batteries: 26 g
- Torque at a voltage of 1.35 on seconds hand shaft: 150 µNm
- The kit includes: Central fixation nut. hand nut. hanger and rubber washer
| Product Name | High Torque Clock Movement UTS 11.0 mm |
|---|---|
| Price | €5.69 |
| Brand | UTS |
| Accuracy | ±1sec. daily |
| Battery | R6 |
| Height (mm) | 56 mm |
| Width | 56 mm |
| Thickness | 30 mm |
| Manufacturer | Uhrentechnik Schwarzwald Montageservice GmbH |
| Country of Manufacture | Germany |
| Movement Type | Quartz step |
| Shaft Length (mm) | 13.8 |
