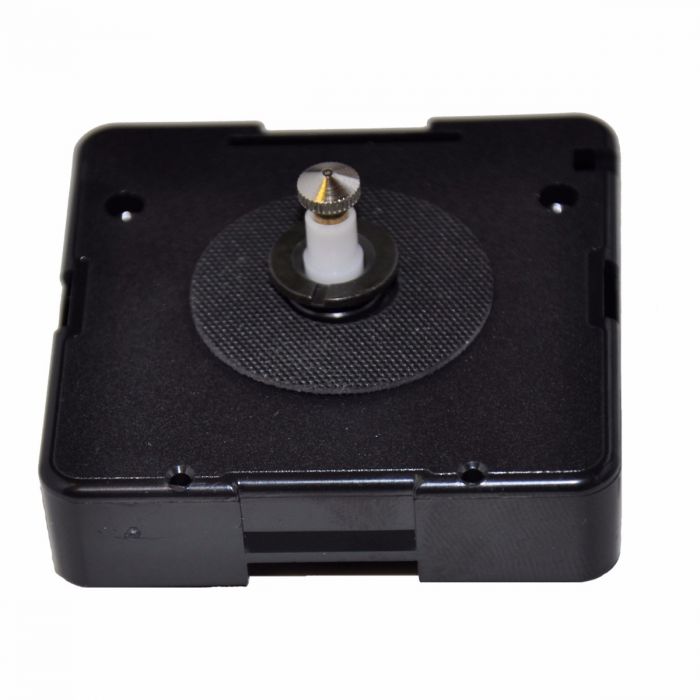

Clock Movement W838-1
€3.94
€3.18
Out of stock
SKU
W838-1
- Buy 10 for €3.63 €2.93 each and save 8%
- Buy 100 for €2.59 €2.09 each and save 34%
- Junghans Quartz Movement W838.
- Dimensions 56 x 56 x 17 millimeters.
- Hand Shaft Length from movement to the tip is 13.2 mm long.
- Supplied without hands and without battery.
- Quiet and reliable.
Junghans quartz movement for dial thickness up to 4.0 mm
- Movement without the pendulum and melody
- Technical description:
- Powered by a single carbon-zinc battery IEC(AA) 1.5 V R6
- Frequency of quartz 32.768 KHz
- Average operating current of up to 130 μA
- Operating voltage: 1.2......1.7V
- Operating temperature: -5 C...+50 C
- Storage temperature: -20 C...+70 C
- Accuracy at room temperature ± 1 sec/day
- Battery life of about 1 year
- Mounting position: any
- Weight without batteries: 26 g
- Torque at a voltage of 1.35 on seconds hand shaft: 50 μNm
- The kit includes: Central fixation screw, rubber washer, hanger and hand nut.
| Product Name | Clock Movement W838-1 |
|---|---|
| Price | €3.18 |
| Brand | Junghans |
| Accuracy | ±1sec. daily |
| Battery | R6 |
| Height (mm) | 31 |
| Width | 56 mm |
| Thickness | 56 mm |
| Manufacturer | Uhrentechnik Schwarzwald Montageservice GmbH |
| Country of Manufacture | Germany |
| Movement Type | Kvartsi |
| Shaft Length (mm) | 13.8 |
