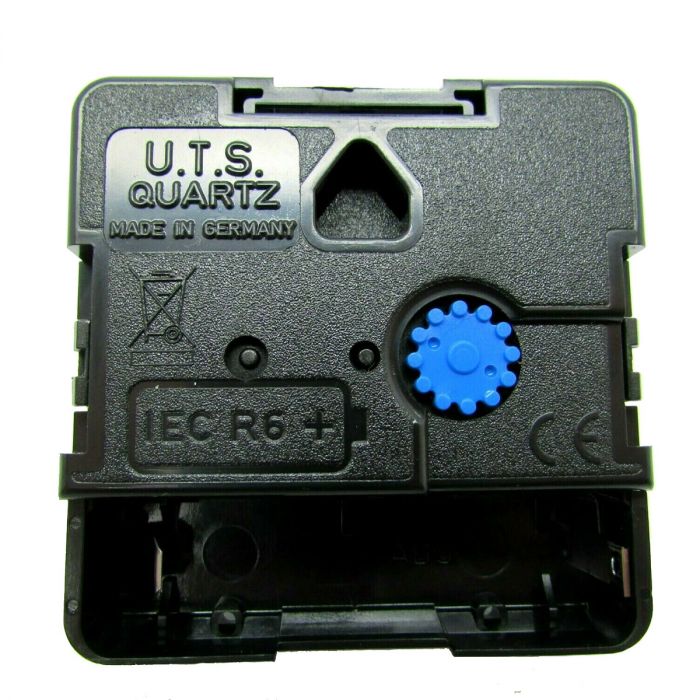

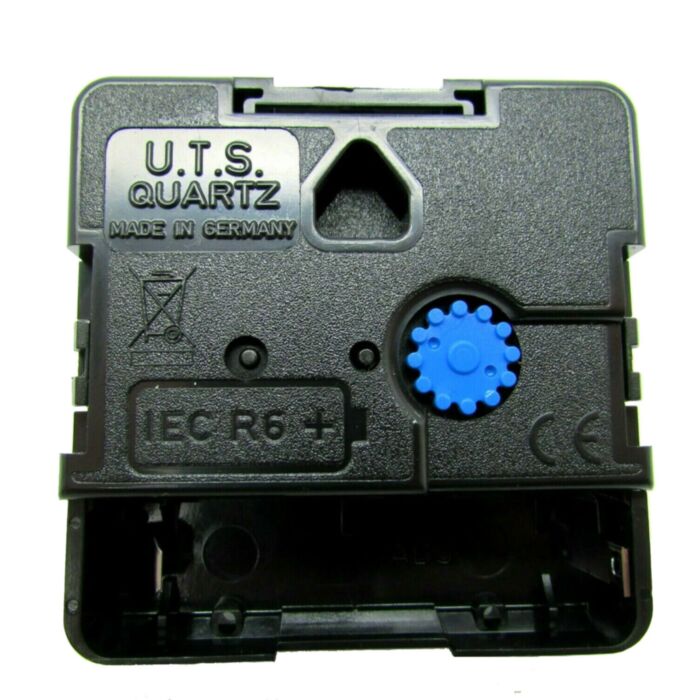

High Torque 24-hour Quartz Movement
€5.59
€4.51
In stock
SKU
U2100002024
- Buy 10 for €5.39 €4.35 each and save 4%
- This is the euroshaft high torque 24-hour movement for up to 8 mm thick dial.
- If you want to make yor own wall clock with the diameter above 40 cm then you must use high torque movements and counterbalanced hands.
- The hands for the euroshaft movements have a slightly different hole sizes and shape than the hands for the rest of our high torque movements, so they cannot be interchanged.
- The kit includes a clock mechanism, a center nut, a rubber plate, a hook and a one minute fastening nut.
- There are three colors of nuts: black, gold and silver.
- The length of the center nut must be selected according to the thickness of the dial.
- The hand nuts are closed and open.
- The closed nut is used if there is no second hand.
- One R6 battery is needed to use the clock mechanism, which must be ordered separately.
- 24-Hour High Torque Quartz Clock Movement
- Powered by a single carbon-zinc battery IEC(AA) 1.5 V R6
- Frequency of quartz 32.768 KHz
- Average operating current of up to 130 μA
- Operating voltage: 1.2......1.7 V
- Operating temperature: -5 C...+50 C
- Storage temperature: -20 C...+70 C
- Accuracy at room temperature ± 1 sec/day
- Battery life of about 2 years
- Mounting position: any
- Weight without batteries: 26 g
- Torque at a voltage of 1.25 on seconds hand shaft: 150 μN.
- The kit includes: central fixation nut, hand nut, hanger and rubber washer.
- Length of second hand ≤ 125 mm.
- Length of minute hand ≤ 400 mm.
- Weight of second hand ≤ 1.2 g.
- Weight of minute hand ≤ 20 g.
| Product Name | High Torque 24-hour Quartz Movement |
|---|---|
| Price | €4.51 |
| Brand | UTS |
| Accuracy | ±1sec. daily |
| Battery | R6 |
| Height (mm) | 56 mm |
| Width | 56 mm |
| Thickness | 17 mm |
| Manufacturer | Uhrentechnik Schwarzwald Montageservice GmbH |
| Country of Manufacture | Germany |
| Movement Type | Quartz step |
| Shaft Length (mm) | 16.2 |
