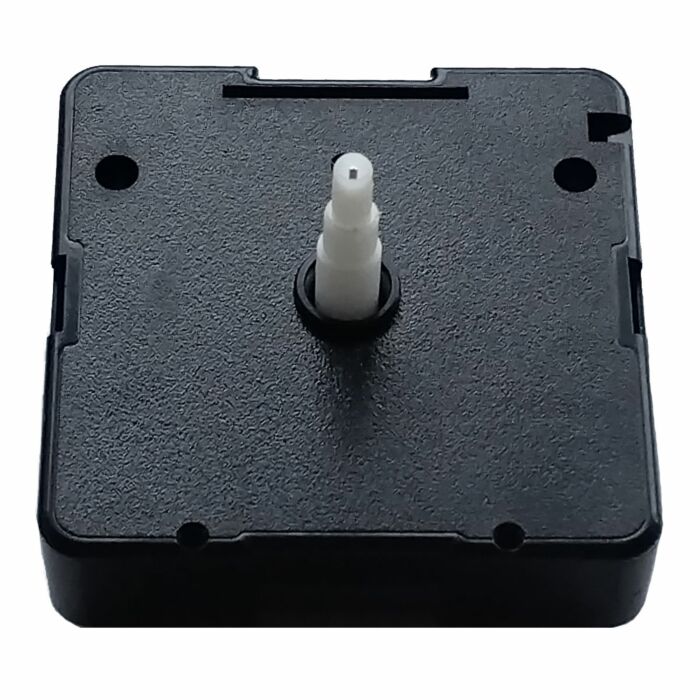

High Torque Clock Movement UTS 800306HT
- Buy 10 for €6.25 €5.04 each and save 10%
- For a 13.1 mm plate.
- For making 80 cm wall clocks.
- Hook load capacity up to 2.5 kg.
- The kit includes a clock mechanism, a center nut, a rubber plate, a hook and a one-minute fastening nut.
- There are three colors of nuts: black, gold and silver.
- The length of the center nut must be selected according to the thickness of the dial.
- The hand nuts are closed and open.
- The closed nut is used if there is no second hand.
- One R6 battery is needed to use the clock mechanism, which must be ordered separately.
Wall Clock Mechanism with Increased Torque UTS 800306HT
Quartz Mechanism with round shafts 19.6/5.70 mm
Dial Thickness up to 8 mm
Three Different Fixing Methods:
Fixing screw M8x0.75
With threaded screws
Snap in
With Euroshaft minute hand shaft
Specifications:
AA-size Alkaline Battery LR6 1.5V
Quartz Frequency: 32.768 kHz
Average power consumption: ~ 130 μA
Operating voltage: 1.2 .... 1.7V
Operating temperature: -5°C .. + 50°C
Storage temperature: -20°C ... + 70°C
Mechanism output frequency: 1Hz
Accuracy: Corresponding to DIN8325 ≤1sec / day
Lifetime / Battery: ≥2 years
Positioning: any
Weight without batteries 26g
Moment 1.25V spoon ripple on the second-row shaft 150μNm
Specifications for hands:
Seconds Minute
Length [mm] ≤125 ≤400
Weight [g] ≤1.2 ≤20
Imbalance [gcm] ≤1.5 ≤50
Hanger of max. 2.5 kg
Maximum tightening depth of the center nut 3.5 mm
Mounting pressure: maximum 25Nm per hour / minute and max 10Nm second hands.
| Product Name | High Torque Clock Movement UTS 800306HT |
|---|---|
| Price | €5.61 |
| Brand | UTS |
| Accuracy | ± 30sec. monthly |
| Battery | R6 |
| Height (mm) | 56 mm |
| Width | 56 mm |
| Thickness | 17 mm |
| Manufacturer | UTS |
| Country of Manufacture | Germany |
| Movement Type | Quartz step |
| Shaft Length (mm) | 20.1 |
