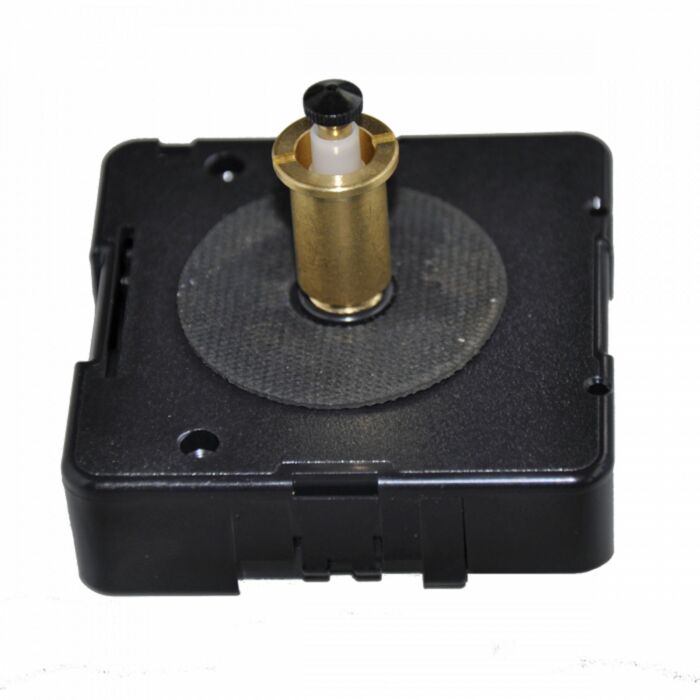

High Torque Clock Movement UTS U2100-002HT
- Buy 10 for €7.28 €5.87 each and save 10%
- For a 80 mm dial thickness.
- For making up to 100 cm wall clocks.
- Hook load capacity up to 2.5 kg.
- The kit includes a clock mechanism, a center nut, a rubber plate, a hook and a one-minute fastening nut.
- There are three colors of nuts: black, gold and silver.
- The length of the center nut must be selected according to the thickness of the dial.
- The hand nuts are closed and open.
- The closed nut is used if there is no second hand.
- One R6 battery is needed to use the clock mechanism, which must be ordered separately.
Wall Clock Movement with Increased Torque UTS
Quartz Mechanism with Integrated Hook
Dial Thickness up to 8 mm
Three Different Fixing Methods:
Fixing screw M8x0.75
With threaded screws
Snap in
With Euroshaft minute hand shaft
Specification of movement:
AA-size Alkaline Battery LR6 1.5V
Quartz Frequency: 32.768 kHz
Average power consumption: ~ 130 μA
Operating voltage: 1.2 .... 1.7V
Operating temperature: -5°C .. + 50°C
Storage temperature: -20°C ... + 70°C
Mechanism output frequency: 1Hz
Accuracy: Corresponding to DIN8325 ≤1sec / day
Lifetime / Battery: ≥2 years
Positioning: any
Weight without batteries 26g
Moment 1.25V spoon ripple on the second-row shaft 150μNm
Specifications for hands:
Seconds Minute
Length [mm] ≤125 ≤400
Weight [g] ≤1.2 ≤20
Imbalance [gcm] ≤1.5 ≤50
Hanger of max. 2.5 kg
Maximum tightening depth of the center nut 3.5 mm
Mounting pressure: maximum 25Nm per hour / minute and max 10Nm second hands.
| Product Name | High Torque Clock Movement UTS U2100-002HT |
|---|---|
| Price | €6.52 |
| Brand | UTS |
| Accuracy | ± 30sec. monthly |
| Battery | R6 |
| Height (mm) | 56 mm |
| Width | 56 mm |
| Thickness | 17 mm |
| Manufacturer | UTS |
| Country of Manufacture | Germany |
| Movement Type | Quartz step |
| Shaft Length (mm) | 16.2 |
