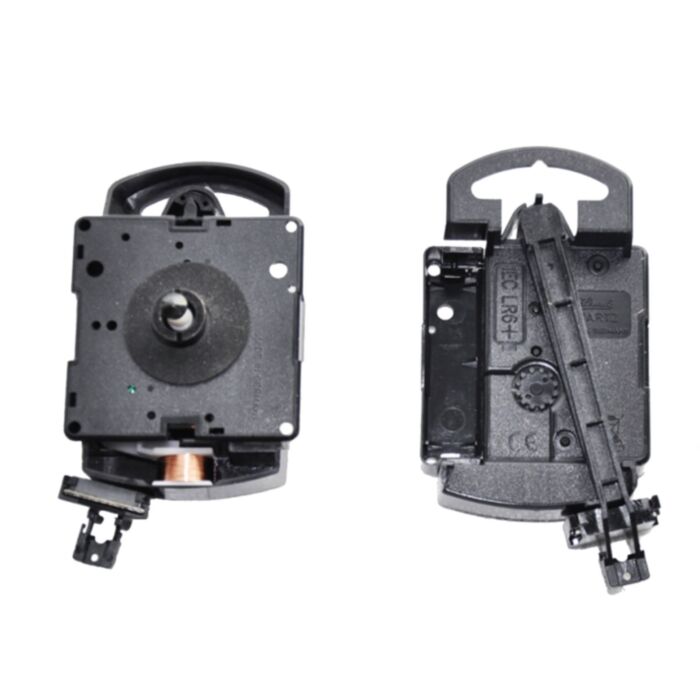

Movement for Pendulum Clock 13.8 mm
€14.00
€11.29
In stock
SKU
W2200001000
- Pendulum length up to 500 mm.
- For dial thickness up to 2 mm.
- Movement fixation with central fixing screw M 8 x 0.75.
- You can choose color of central fixing screw between sillver, black or golden.
- You can choose minute hand fixing nut between open or closed and color between sillver, black or golden.
- Max. pendulum weight 80g.
- The amplitude of the pendulum depends on the length of pendulum.
- Pendulum not included. You can buy it separately from us.
- Battery LR6 recommended.
Hermle Movement for Pendulum Clock 13.8 mm
Pendulum movements technical data
- Battery Alkaline AA Size LR6 1.5 V
- Quartz frequency 32.768 kHz
- Average current ~150 µA
- Voltage range 1.2-1.7 V
- Operating temperature -5°C...+50°C
- Storage temperature -20°C...+70°C
- Motor output frequency 1 Hz
- Accuracy ± 1 second per day
- Battery operating timeapproximately 1 year
- Assembly position vertical
- Weight without battery 56 g
- Torque at second hand shaft with 1.35 Volt 50 µNm
- Hands specification
- Length (mm) of second hand ≤ 90
- Weight (g) of second hand ≤ 0.6
- Counterweight (gcm) of second hand ≤ 0.5
- Length (mm) of minute hand ≤ 160
- Weight (g) of minute hand ≤ 8
- Counterweight (gcm) of minute hand ≤ 6
- Weight on hanger max. 2.5 kg
- Screw-in depth of center fixation nut max. 3.5 mm
- Mounting pressure for hands max. 25 N hour/min and max. 10 N second
| Product Name | Movement for Pendulum Clock 13.8 mm |
|---|---|
| Price | €11.29 |
| Brand | Hermle |
| Accuracy | ±1sec. daily |
| Battery | LR6 |
| Height (mm) | 107 mm |
| Width | 56 mm |
| Thickness | 28 mm |
| Manufacturer | Hermle Uhrenmanufaktur |
| Country of Manufacture | Germany |
| Movement Type | Quartz Step with Pendulum |
| Shaft Length (mm) | 13.8 |
